现场安全资料实例（146) 悬挑式钢平台施工方案三

悬挑钢平台施工方案审批表

悬挑钢平台施工方案

3号楼因暂缓安装人货电梯，为解决施工材料的垂直运输，在建筑物外围搭设悬挑钢平台，悬挑平台尺寸3.4m×4m（图2-4-7-1）。具体设计方案如下。

一、悬挑平台构造

1． 设计极限荷载为2t，为安全考虑，钢平台实际使用荷载控制在1.5t。

2．悬挑平台以2根20a工字钢为主梁，以4根Φ20钢绞线悬挑于上层剪力墙上，钢丝绳与主梁工字钢通过不小于Φ20（圆钢）做成的吊环连接，连接部位应使用卡环（图2-1-7-2）。

3． 3根次梁采用18号工字钢，次梁一端搁置在主体结构梁上与预埋件焊接，一端搁置在主梁上与主梁焊接。

4．次梁上焊Φ4.8钢管，间距为250mm，上铺9mm厚竹夹板，栏杆为钢管与工字钢焊接，间距为1000mm，立杆上附两道水平杆（图2-1-7-2），栏杆刷红白相间油漆，栏杆外围采用九夹板围护。

5．所有焊缝应饱满、牢固，符合规范要求，钢丝绳用花篮螺栓（V03.0″型），连接处另加保险钢丝绳两道，每根钢丝绳用４只YT – 22钢丝夹具卡牢。与剪力墙固定端应栓牢。夹板与水平钢管用８号铁丝捆扎牢（图2-1-7-3）。

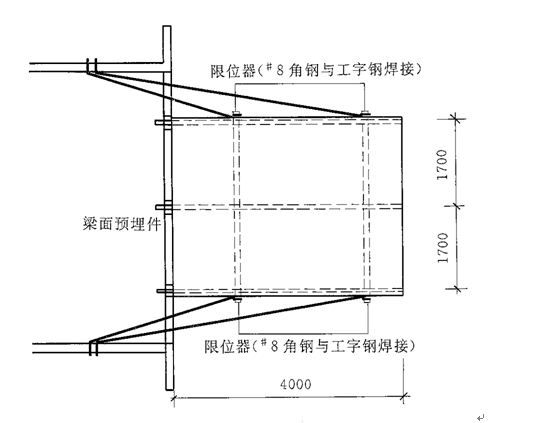

图2-1-7-1 悬挑式钢平台平面图

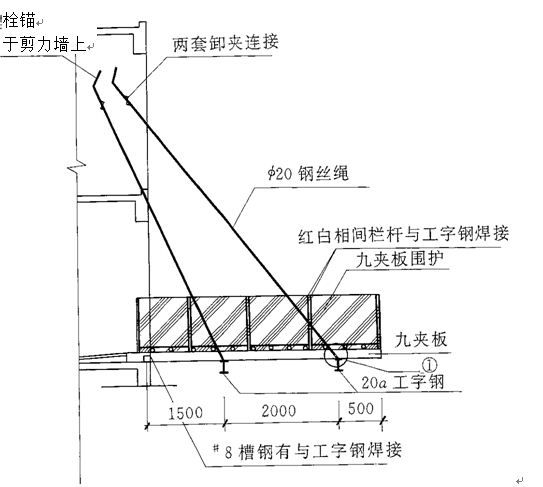

图2-1-7-2 悬挑式钢平台剖面图

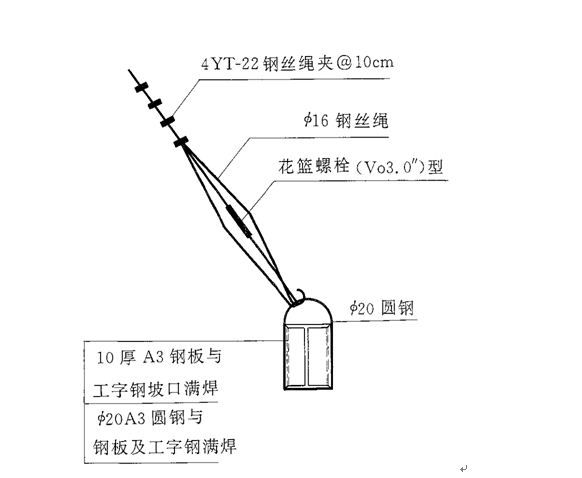

图2-1-7-3 悬挑式钢平台节点图
